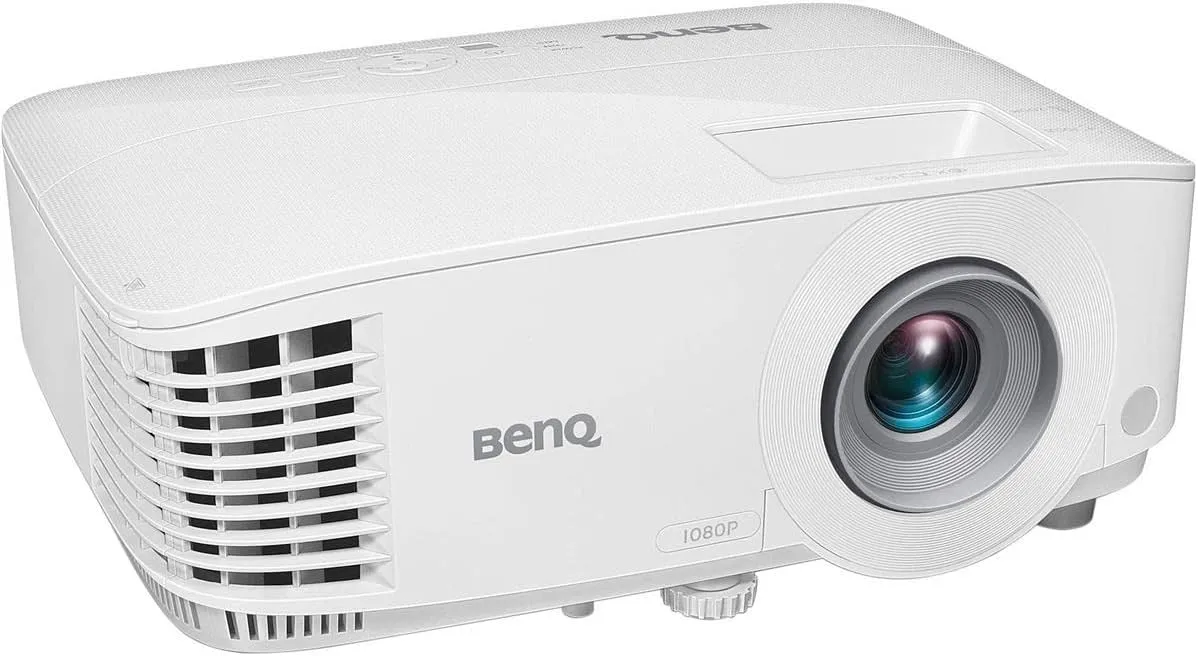

- Super Image Quality: 4000 Lumens , Full HD (1920x1080), 16,000:1 contrast ratio, 16:9 aspect ratio.If you prefer images with that quality, The brightness level of the projected image will change accordingly when you switch between different input signals.For best display picture results, you should select and use an input signal which outputs at the projector’s native resolution.Brilliant Color utilizes a new color-processing algorithm If you prefer images with that quality,select On
- Flexibility For Setup: With 1.3x Zoom, 100 [email protected], 2D Keystone, Auto Vertical Keystone, Corner Fit Correction
- Lamp Save Mode: 15,000hr long lamp life to lower the cost of ownership
- Network Control: Crestron, AMX and PJ-Link for network control via LAN, and RS-232 for installation distance up to 50ft
- Diversified Presentation Solutions: USB Reader, QCast APP Compatibility, Network projection and optional USB wireless dongles.Typical Power Consumption:320W( Normal)
Display
Projection System: DLP
Native Resolution: 1080p(1920x 1080)
Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Brightness (ANSI lumens): 4,000 Lumens
Contrast Ratio (FOFO): 16,000:1
Display Color: 30 Bits (1,07 billion colors)
Native Aspect Ratio: Native 16:9 (5 aspect ratio selectable)
Light Source: Lamp
Light Source Wattage: 240W
Light Source life*:
Normal 4000 hours
Eco 8000 hours
SmartEco 8000 hours
Lampsave 15000 hours
Optical
Throw Ratio: 1.15-1.5
Zoom Ratio: 1.3:1
Lens: F=2.59~2.87, f=16.88~21.88
Keystone Adjustment: 2D keystone, Vertical ± 30 & Horizontal ± 20 degrees, Auto Vertical keystone
Projection Offset**: 105%±2.5% (Full-Height)
Clear Image Size (Diagonal): 60"~180"
Image Size: 30"~300"
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23~120Hz
Audio
Speaker: 10W x1
Interface
PC (D-sub): 1
Monitor out (D-sub 15pin): 1
HDMI: 2 (one shared w/ MHL)
USB Type A: 2 (one for Wireless dongle, one for USB reader, Power supply, 5V,1A)
USB Type Mini B: 1 (Download & Page up/down )
Audio in (3.5mm Mini Jack): 1
Audio out (3.5mm Mini Jack): 1
LAN (RJ45): 1
RS232 (DB-9pin): 1
IR Receiver: 2(Front/Top)
Security Bar: 1
Compatibility
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Dimension and Weight
Dimensions (W x H x D)(mm): 296 x 120x 221 mm
Net Weight (Kg/ lbs ): 2.5kg
Accessories Included (Standard)
Carton: Carton brown
Remote Control w/ Battery: x 1(RCE013)
Power Cord (by region): x 1 (1.8m)
User Manual CD: x 1 (24L)
Quick Start Guide: x 1 (18L)
VGA(D-sub 15pin) Cable: x 1 (1.5m)
Lens cover: x 1
