Product Description

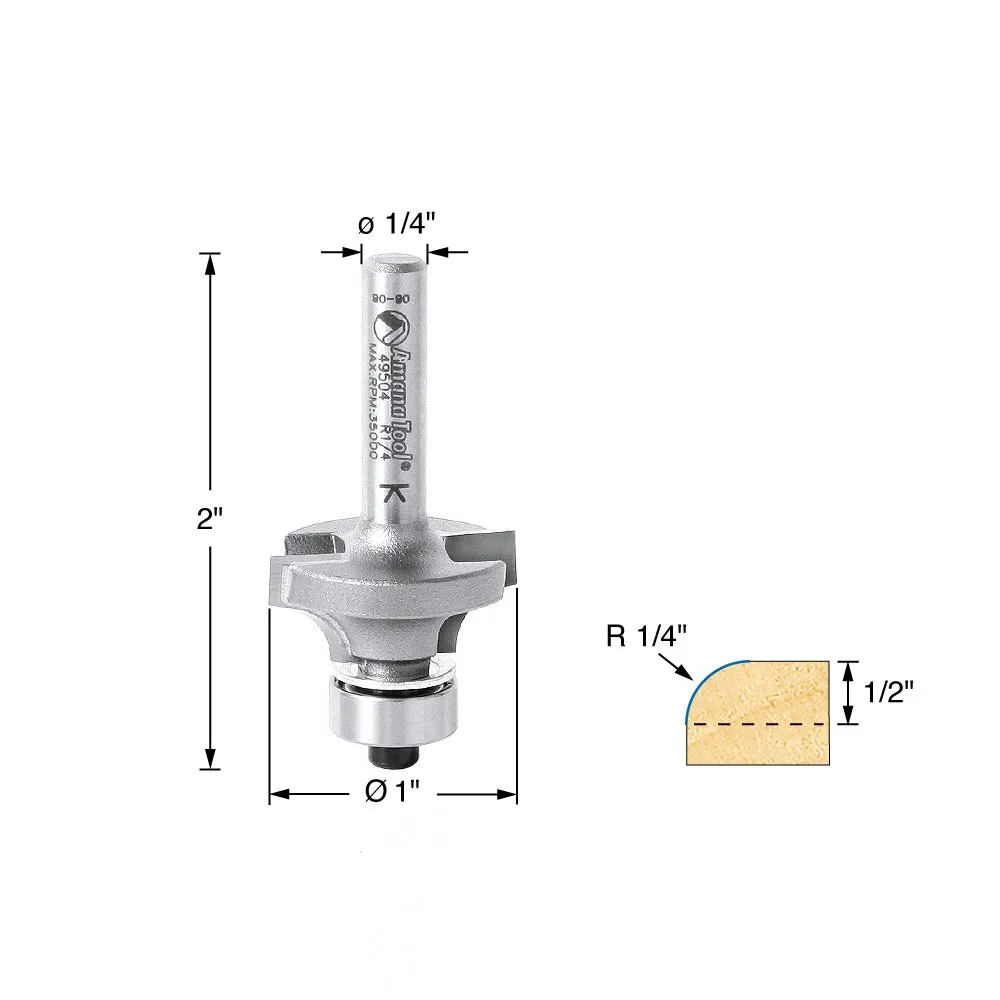

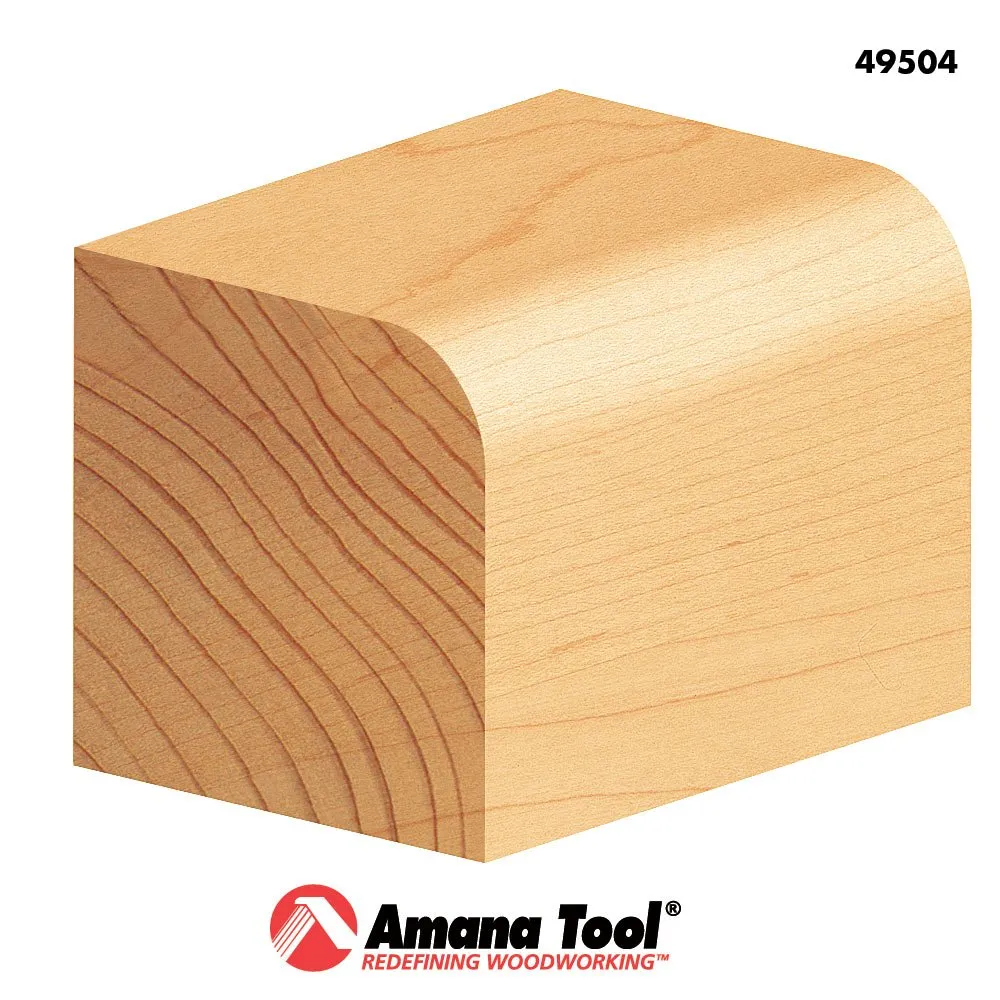

The basic edge-forming bit, The Corner-Rounding bit rounds an edge to a given radius. The tool is shoulder to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as round over, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder Can be produced, in effect making the bit a beading Bit., #49504 diameter (D) 1, radius (r) 1/4, cutting Height (B) 1/2, shank (D) 1/4, overall length (L) 2, replacement bearing 47706, flutes 2, D1 1/2, 49504 carbide Tipped corner round 1/4 radius x 1 inch dia X 1/2 x 1/4 shank

From the Manufacturer

Since 1972, Amana Tool has been producing router bits and has become the global leader in its field. In fact, the company was the first manufacturer to produce router bits according to the Holz BG German standard for safety and quality. This standard contains rules that determine the structure and quality of the tool's material in order to create the safest environment for the user. From its beginning, Amana Tool has always used the highest quality materials, and its tools are produced using unique technologies, a majority of which were developed and built by the company's engineers following decades of testing and experience. For example, Amana Tool uses carbon alloy steel for its router bits that contains vanadium particles. This improves the structural integrity of the steel and prevents corrosion and defects in the internal structure of the material that can lead to cracks and breaks. High-tech machinery processes the carbon alloy steel to manufacture the router bodies in a single clamping. This yields router bits with superior balance, centricity, precision and symmetry. The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

• Package Dimensions ‏ : ‎ 5.47 x 2.8 x 0.83 inches; 1.28 ounces
• Date First Available ‏ : ‎ April 21, 2004
• Manufacturer ‏ : ‎ Amana Tool
• Country of Origin ‏ : ‎ Israel
